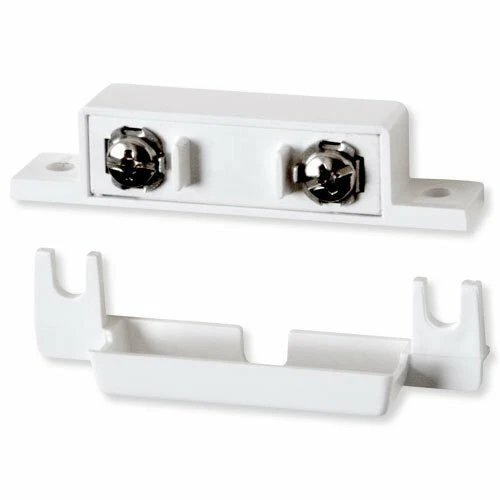

Winland Electronics Winland TA40 TempAlert Wired Low Temperature Sensor

Winland TA-40 TempAlert Wired Low Temperature Sensor Normally Closed Output

The TempAlert TA40 from Winland can activate an alarm system, monitoring system or dialer if the temperature of a room falls below +4.17°C (+39.5°F).   The contacts are normally closed above +4.17°C (+39.5°F).  No power is required for operation.

Never worry again about your home, cottage or an unattended building getting too cold which can lead to pipes bursting, leaks and other types of damage that could follow.

The TA40’s compact size means it can be installed in virtually any spot without being very noticeable. It requires no power to operate and is compatible virtually all alarm systems as well as with the TA-1, TA-2HL and MTA-1.

Winland TA40 Temp Alert Specifications

• Monitors for low temperature
• Normally closed output above +4.17°C (+39.5°F)
• Rated up to 200mA @ 24V AC/DC
• No power required to operate
• Operating temperature -40 to 212°F (-40 to 100°C)
• Dimensions: 2.5″ x .8″ x .55″
• 1-year warranty

Winland TA40 Mechanical Temp Alert Includes

• 1 x TA40
• 1 x Installation/Operating Instructions Guide

Winland TA40 Mechanical Temp Alert Support

Winland TA40 Datasheet
Winland TA40 User Manual
