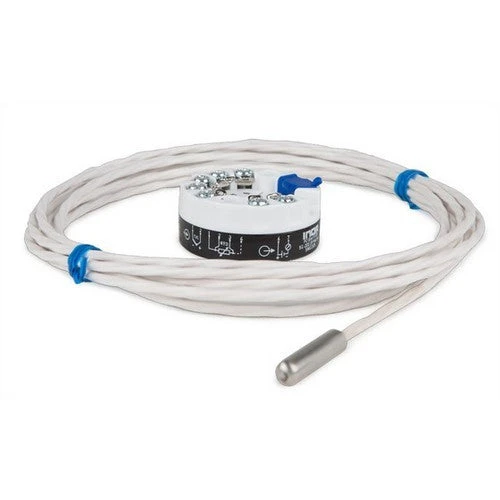

Sensaphone RTD Temperature Transmitter -200 To 204C With 1 Inch Probe

The RTD probe with a 4-20mA transmitter can be used to measure the temperature in extreme environments. Part number FGD-0240 is calibrated to operate over the range -200° to 35°C.



Part number FGD-0240-SPEC can be customized at the time of order to operate over any range between -200° and 204°C.



Product Specifications:

• Name: RTD Probe w/4-20mA Transmitter
• Sensor Temperature Range: -328° to 399°F | -200° and 204°C
• Custom transmit ranges can be specified at the time of order
• Connection: Hardwired
• RTD Element: PT100 – 385ALPHA – CLASS – B
• Dimensions: 1” stainless steel RTD probe with 10’ cable
• Sensor Series: 4-20mA Series
• Notes: Element Tolerance to IEC 60751 edition 2.0, par 5.1.2
