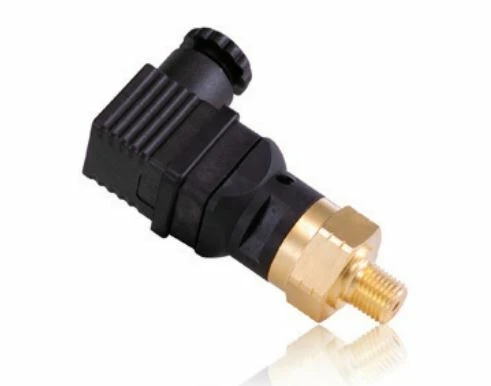

Sensaphone FGDD30001 Heavy Duty Low Pressure Switch

FGDD30001 Heavy Duty Low Pressure Switch

The FGDD30001 is a heavy-duty low-pressure switch thatFTs designed for the pneumatics industry. The switch can be adjusted from 5 to 30 PSI and comes pre-set for 15PSI. It has a mechanical life excess of 1,000,000 cycles and has a maximum overpressure of 350 PSI. The FGDD30001FTs tough and rugged compact brass housing has an IP65 weather resistance rating and can withstand temperatures as low as -20 F to as high as 180 F.

FGDD30001 Heavy Duty Low-Pressure Switch Specifications:

• Set Point Ranges from 5 to 30 PSI
• Maximum Overpressure of 350 PSI
• Rugged compact brass housing
• SPDT Switch (up to 5 Amp)
• IP 65 Environmental protection
• Repeatability: ± 2% FS
• Mechanical Life of 1,000,000 Cycles
• Temperature Range: -20180°F

FGDD30001 Heavy Duty Low-Pressure Switch Support:

• FGDD30001 Data Sheet
