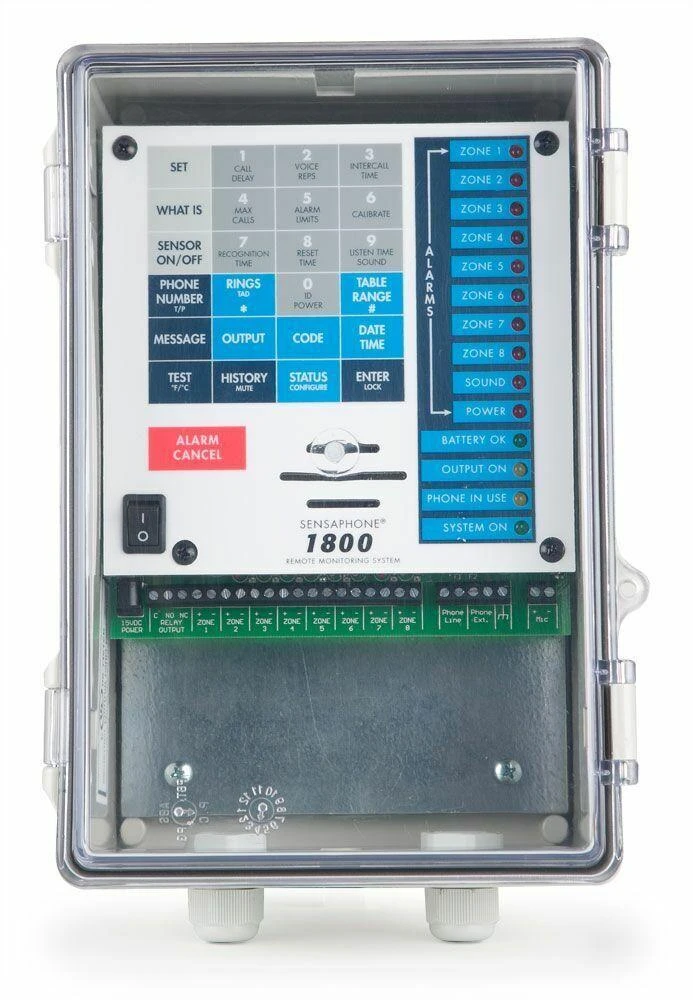

Sensaphone FGD-1800CD 8 Zone Auto Dialer In NEMA Case With Clear Door

Sensaphone 1800 8 Zone Alarm Landline Dialer

The Sensaphone 1800 is an 8 zone alarm and auto dialer that is accessible from anywhere in the world via the telephone.  The 1800  is capable of providing users with real-time status and phone alerts from up to 8 wired sensors.  It also provides power failure monitoring.

• Monitor 8 input zones – sensors or dry contact inputs
• One external temperature sensor included
• Power failure monitoring
• Auto dialer calls up to 8 numbers on alarm
• Zone specific user recorded messages
• Call in to check status or listen in
• On board relay can be triggered by alarm or controlled remotely
• Built in rechargeable battery backup

Capable of monitoring up to eight different sensors and offering up to eight phone numbers to be contacted when alarms are triggered, this device is suitable for monitoring fridges, freezers, barns, greenhouses, water facilities, industrial facilities and more.

Voice menu programming makes the system easy to use and set up. A custom message can be recorded for each zone/sensor so alarm calls will clearly identify the issue requiring attention.

The Sensaphone 1800 has an board power failure monitoring with a huge array of sensors available to monitor indoor temperature, outdoor temperature, fridge or freezer temperature, humidity, water levels, water leaks/floods, motion, CO2, smoke, doors/windows, cabinets, air quality, pressure, PH, soil moisture, air flow and more!

An on board relay output can be triggered manually or as part of an alarm condition.

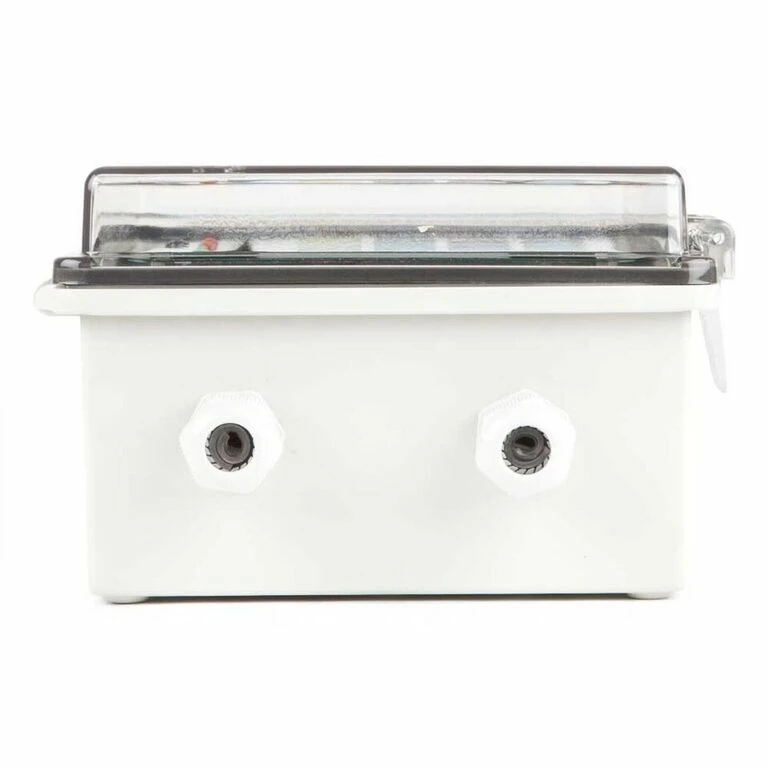

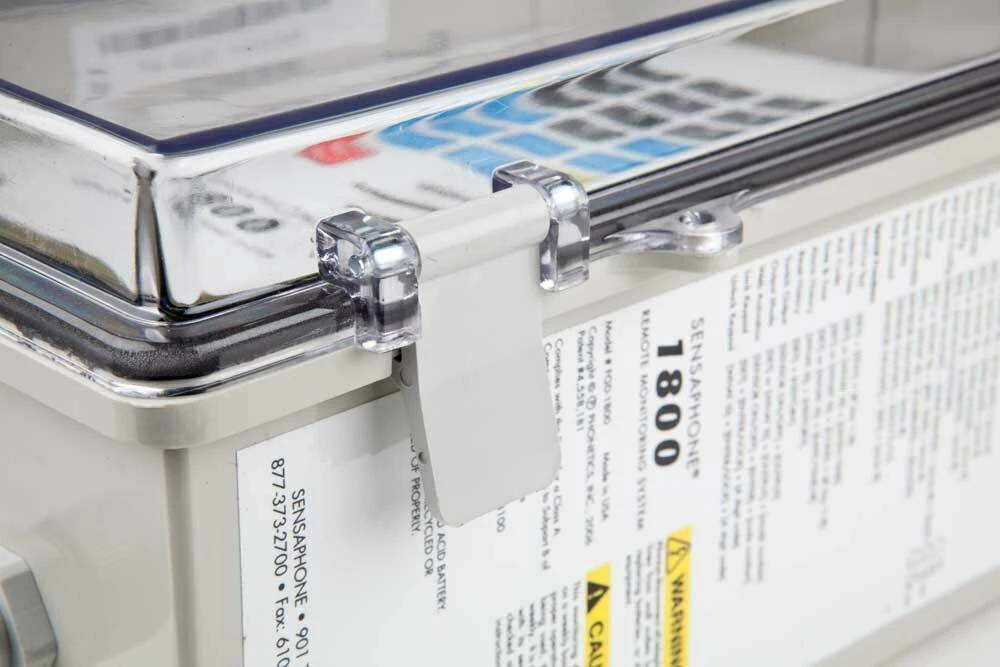

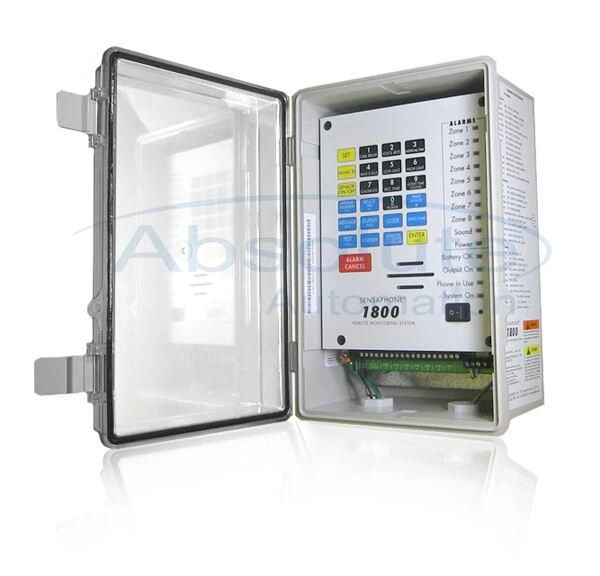

Equipped with a rechargeable battery backup you can be sure that your FGD-1800 will continue to monitor critical systems 24/7.  Packaged lockable NEMA 4X enclosure you can be certain that your device is safe in harsh environments!  The enclosure protects from corrosion, water, severe external condensation, snow, sleet and ice. It also keeps out bugs and spiders that can damage equipment.



Sensaphone FGD-1800CD 8 Zone Alarm Dialer Specifications

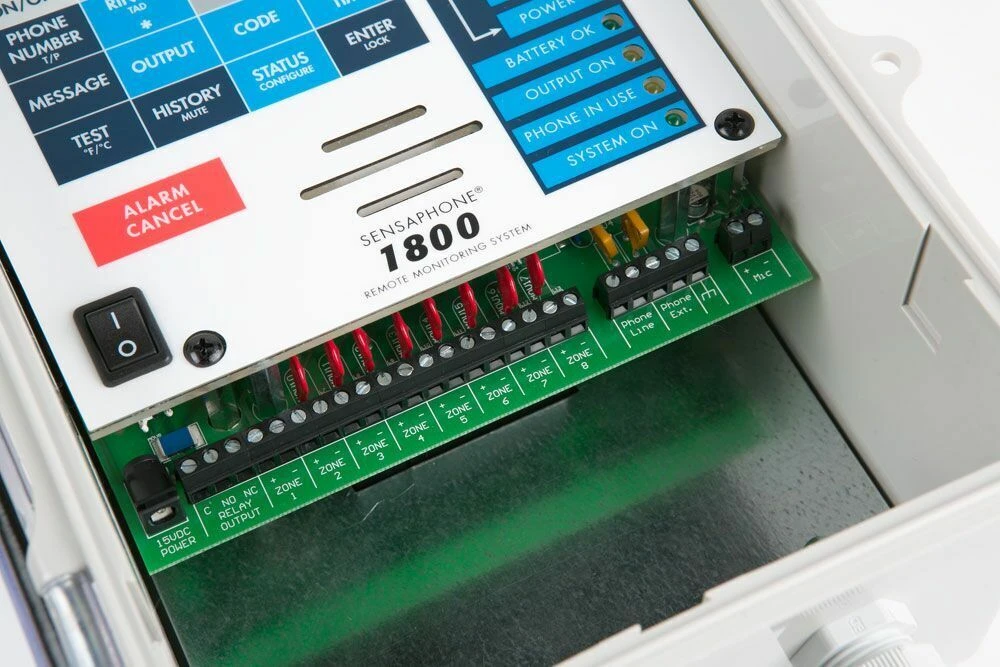

Input Zones:

• Eight universal inputs that support: Normally Open or Normally Closed contacts, 4-20mA transducers, and Temperature sensors: 2.8 & 10K thermistors
• Automatic input type configuration
• Scalable range for analog zones.
• Programmable recognition times.
• Internal calibration.

Output Relay

• One universal output relay. Manual or automatic alarm response switching.

Remote Access, Control and Programming:

• Call in with any Touch-Tone phone to check the status of all monitored conditions.
• Make programming changes remotely from any Touch-Tone phone.

Alarm Notification:

• Up to eight destinations can be contacted for alarms.
• Customized messages for easy identification.
• Voice phone calls or text messages
• Built-in alarm test function to simulate and test the notification process.
• Individual user codes to track who responded to each alarm.
• Web page data display

Local Control and Programming:

• Keypad and speaker for local programming.
• Easy voice-prompted programming.
• Password-protected to restrict remote programming access.
• Recent alarm history playback.

Microphone:

• Internal microphone for custom voice message recording.
• Optional external microphone for monitoring high sound alarms.
• An external microphone can also be used for remote sound monitoring!

Power Supply:

• Comes with plug-in power supply.
• Gel Cell battery backup included.
• Automatically monitors for power failure alarms.

Extras:

• Includes telephone Line Seizure.
• NEMA-4X enclosure.
• Superior internal lightning protection.
• Two-year warranty.

Sensaphone FGD 1800 8 Zone Alarm Dialer Includes

• 1 – Sensaphone 1800 Alarm Dialer
• 1 – Power Supply
• 1 – Internal 6V 1.3AH Rechargeable Battery Backup

Sensaphone 1800 Manual
