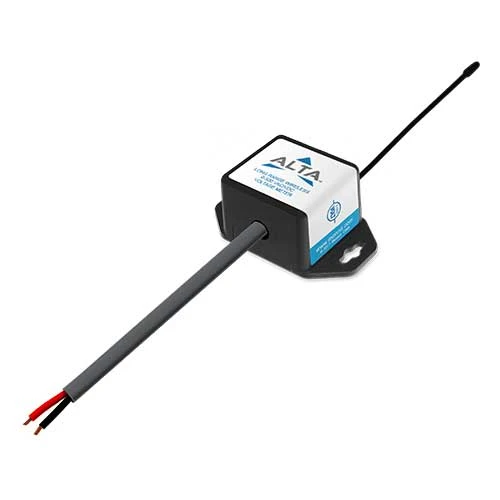

Monnit ALTA Wireless Voltage Meters – 0-500 VDC – Coin Cell Powered, 900MHZ

Monnit wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 500 VAC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is a “voltage observer”.

Monnit MNS2-9-W1-VM-500 Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Voltage Meter Specifications

Calibrated Accuracy with Appropriate Offset: +/- (.5 VACrms + 1.5% of reading)

Response Time: 40 ms

Resolution: .25 VACrms / .35 VDC/Peak Voltage

Lead Wire Length: 2 Wires, 1 ft (12 in), Black (Hot), White (Neutral), 18 AWG (Custom lengths available upon request.)

Absolute Maximum Voltage: 600 VAC RMS

Supported Operation Modes: VAC RMS (root mean squared)

Accuracy: +/- (1 VAC RMS + 3% of reading)

Resolution: 25 VAC RMS

Variation Specifications

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)

Weight: 0.9 oz. (25.51 g)

ALTA Coin Cell Specifications

Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery

Dimension: 2.0 in x 1.125 in x 0.875 in

Max Operating Temperature: -7°C to +60°C ( 20°F to +140°F )

Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )

Supply Voltage: 2.0 – 3.8 VDC

Battery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years. **

Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures

Enclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
