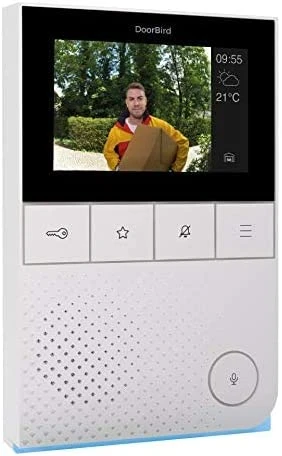

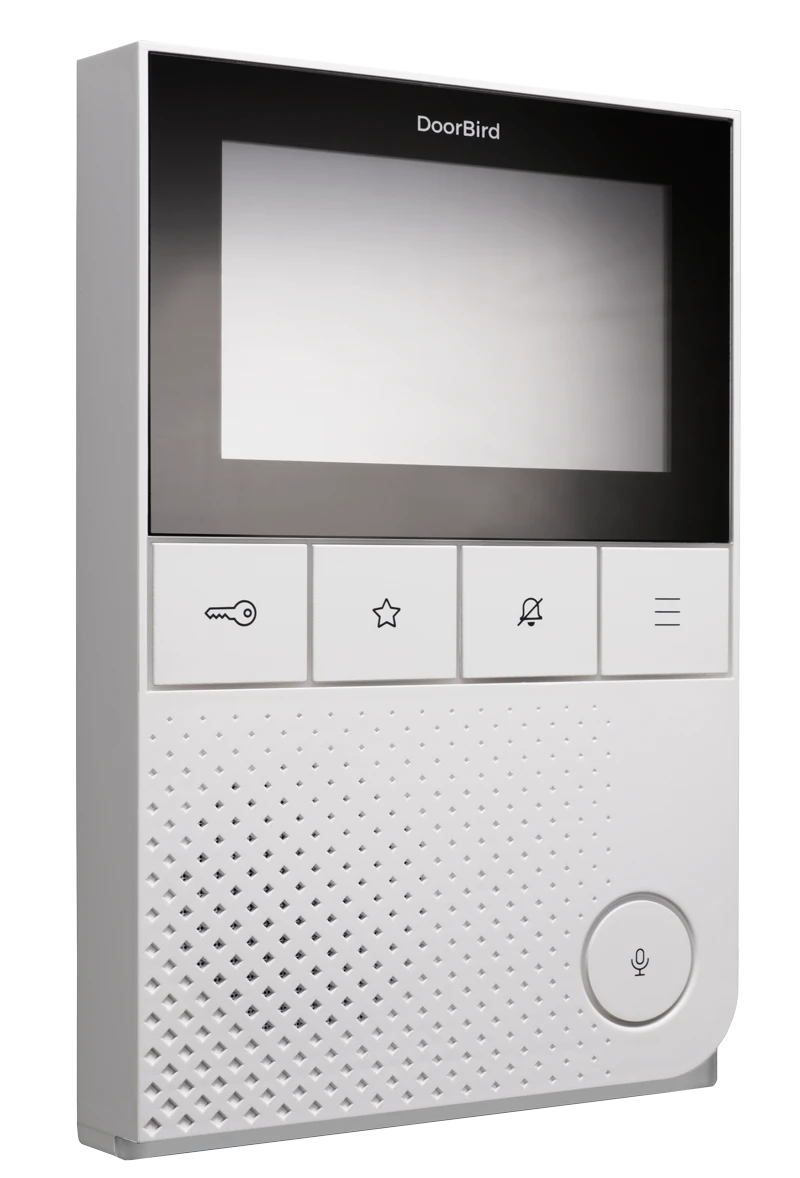

DoorBird IP Video Indoor Station, White

The DoorBird IP Video Indoor Station is an ideal addition to any DoorBird system. When paired with our DoorBird IP Video Door Intercom, the Indoor Station delivers a live video stream, two-way audio communication as well as control of doors and gates. The Indoor Station is compact and designed to complement any environment.



The DoorBird Indoor Station has a touch display made of scratch-resistant tempered Gorilla® glass with an intuitive user interface. It also includes configurable hard buttons with clear symbols for common functions.



This makes the operation:

• intuitive and comfortable
• easy to use for every age group
• even with gloves on possible



Individual chime alerts can be selected for multiple DoorBird Door Intercoms to indicate from which entry the visitor is calling. When the DoorBird Door Intercom is rung, an LED light at the bottom of the Indoor Station flashes a visual alert. The color of the LED light can be customized for multiple DoorBird Door Intercoms.



In less than 10 minutes the installation of the Indoor Station is completed. The DoorBird Indoor Station can connect to the network via WiFi or a network cable. If the Indoor Station is connected using a network cable, it can be powered via Power over Ethernet (PoE) for quick and easy installation. Should the Internet fail, all functions continue to operate within the local network. Once on the Internet, the Indoor Station can connect you to all your DoorBird Door Intercoms – anywhere in the world.



If more than one Indoor Station is used, room-to-room communication between all Indoor Stations is supported. A SIP phone can also be called at the touch of a button, e.g. to contact a concierge or property manager. Calls from a SIP phone to the Indoor Station and Door Station are also possible.



The DoorBird A1101 IP Video Station Features:

• Benefits via IP:
• Door opener and elevator control
• Visitor history (free Cloud Recording)
• Room-to-room communication, when using several Indoor Stations
• SIP support, e.g. for concierge or facility manager calls
• Weather forecast display
• Home and building automation control (IP, TCP, HTTPS, relays, etc.)
• Configurable via the DoorBird App worldwide
• Intuitive User Interface:
• 4“ True Color Touch Display
• Scratch-resistant tempered Gorilla® glass Two-way Audio Communication
• HD Audio, up to 102 dB
• More than 50 doorbell sounds available Compact Housing
• 5 hardware buttons for main functions
• Configurable RGB LED status bar
• Unlimited Range:
• Supports WiFi, Ethernet, PoE
• Support for multiple DoorBird IP Video Door Stations
• Further Options
• Automatic door opening system,
• e.g. for offices



The DoorBird A1101 IP Video Station Specifications:

• Material: Polycarbonate, white

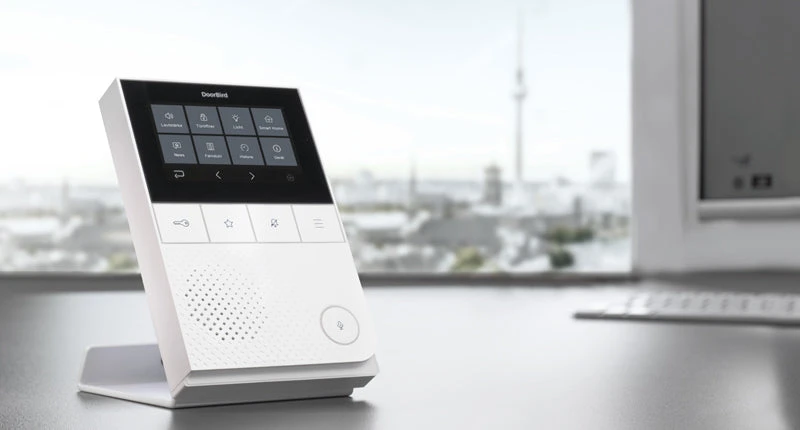

• Mounting type: Surface-mounted, Table Stand ”A8003“ sold separately.
• Power supply: 15 – 48 V DC (max. 15 W) or Power over; Ethernet (PoE 802.3af Mode-A)
• Weight: 430 g
• Connectors:
• LAN/PoE (T+, T-, R+, R-)
• Digital input (0 V, 0 A (NO)) #1, e.g. for storey-call button
• Digital input (0 V, 0 A (NO)) #2,e.g. for second storey-call button
• Bi-stable latching relay #1,max. 24 V DC / AC, 1 Ampere,e.g. for electric door opener or elevator
• Bi-stable latching relay # 2,max. 24 V DC / AC, 1 Ampere,e.g. for electric door opener or elevator
• Bi-stable latching relay # 3,max. 24 V DC / AC, 1 Ampere,e.g. for electric door opener or elevator
• 15 – 48 V DC input (+, -), max. 15 W
• Power consumptions: 5 W
• Approvals: CE, FCC, IC, RoHS, IP50
• Dimensions: 179.5 x 115 x 25 mm (H x W x D); 7.07 x 4.53 x 0.98 in (H x W x D)
• Operating conditions: 0 to +55°C / 32 to 131°F; Humidity 0 % to 85 % (non condensing)
• Scope of delivery:
• 1x IP Video Indoor Station
• 1x Mounting bracket
• 1x RJ45 Adapter
• 1x Power supply unit (main adaptor) with four country-specific adaptors (110 – 240 V AC to 15 V DC)
• 1x Quickstart guide with Digital Passport
• 1x Installation manual
• 1x Small parts
• EAN: 4260423860902
• Warranty: see www.doorbird.com/warranty
• System requirements:
• Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
• Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
• Network: Ethernet Network, with DHCP
• Supported door stations: Any DoorBird IP Video Door Station
• Display:
• Dimensions: 4“ True Color LCD
• Touch: Yes, capacitive
• Resolution: 800 x 480 px
• IPS: Yes
• Audio:
• Audio components: Speaker and microphone, echo and noise cancellation (AEC, ANR)
• Audio streaming: Two-way
• Network:
• Ethernet: PoE 802.3af Mode-A
• WiFi: 802.11 b/g/n 2.4 GHz
• Integrated Wireless Modules:
• WiFi: 802.11 b/g/n 2.4 GHz
• Optional Accessories
• Sold separately: see www.doorbird.com/buy
