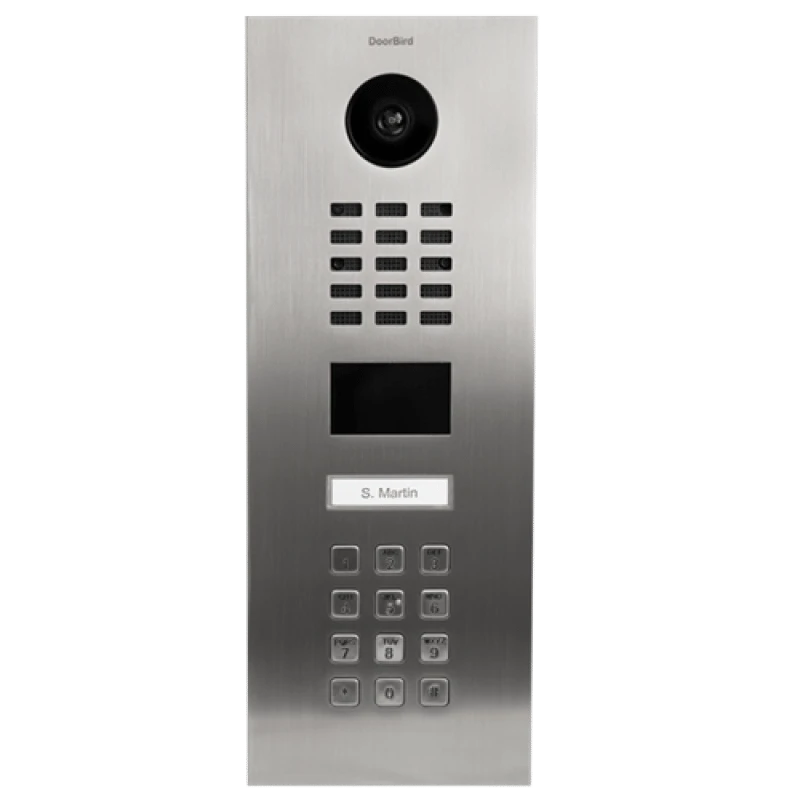

DoorBird IP Video Door Station, 1 Call Button, Keypad, Stainless Steel

The DoorBird D2101KV is an IP video door intercom with a built-in numeric keypad and RF reader for access control applications such as gates or entrances.



The D2101KV allows the home or property owner to receive a push notification on the free iOs or Android DoorBird app when the call button is pressed or when motion is sensed. Tenants and homeowners can answer the door from anywhere in the world just as easily as if they were home.



Set up multiple users and individual user schedules to allow access via PIN code or RF fob. When access is granted, the built-in relay can trigger a gate, door, or door strike.



Doorbird users can proactively check the live video, listen in or choose to have a two-way voice chat with the visitor or intruder. The built-in high-definition colour video camera captures amazing high-definition 720p colour video during the day. When it gets dark it automatically switches to night vision mode with night vision provided by the built-in infrared LEDs.



The built-in 4D motion sensor can be adjusted to only pick up motion in select areas, and it can even differentiate between visitors coming and going!



DoorBird features FREE cloud access, live viewing and cloud recording. The free service includes VGA images of the most recent 20 visitors. The optional paid cloud service features HD videos with up to 7 days of unlimited videos. Both free and cloud services allow images/videos to be downloaded to the user’s smartphone or tablet. In addition, DoorBird stations have onboard memory to store VGA images of the last 50 visitor histories.



DoorBird can also be integrated with SIP systems, select ONVIF-enabled NVRs, and 3rd party applications including Control4, Crestron, URC, RTI, Chamberlain/Liftmaster, Fibaro, Kevo, Elan, Savant, Genie, Vera, August and more! Web interface, open API and MJPEG feeds can be used to create custom integrations as well.



Two relays are on board to allow connection to a door strike, allowing tenants to let visitors in using the app. There is also an RFID reader built into the door station, to allow tenants with a valid card, to unlock a door.



The built-in keypad and RFID reader can be used with Doorbird access cards to allow tenants/users to automatically unlock a door or open a gate, or trigger an event by simply presenting their credentials to the DoorBird intercom.



The DoorBird service is FREE with no set-up or monthly fees. Cloud video recording is available for an optional monthly fee. Multiple users can be set up to receive alerts or check video/audio as needed. Users can have access to multiple door bird stations in a single home or multiple properties using the same app.



Please note: The Doorbird station no longer comes with a flush mount back box or a surface mount back box. These must be purchased separately and are needed for installation.



DoorBird D2101KV Features:

• IP video door intercom
• Built-in numeric keypad for access control
• Built-in RFID reader for Doorbird fobs
• Flush mount and Surface mount box are available separately.
• Call button
• User customizable push notifications by motion or call
• High Def 720p colour video
• Ultra-wide angle hemispheric lens 180 degrees hor, 90 deg vertical, straightened
• Automatic night vision with 12 IR LEDs built-in
• IR cut filter
• Onboard 4D multi-sensor motion sensor
• On board Ethernet jack for wired Ethernet connection
• 2 built-in relays, up to 24V 1A
• 1 input
• It May be powered by 15VDC (power supply included) or PoE (power over ethernet)
• Dimensions: 394.5 x 129 x 49.6mm (13.76 x 5.08 x 1.95 in) (H x W x D)
• Operating temperature range -25 to +55C / -13 to 131F
• IP65 weatherproof rated
• What’s Included:
• Doorbird station
• Power supply
• 1 x RFID key fob
• Installation parts
• Manual

Note: An always-on internet connection with at least 0.5 MBit/second upload speed is required. We recommend 1 Mbit/Second upload speed and a wired
